Product Introduction:

The NF-2 needle flame tester is built to check how well your electronic products, plastics, and insulation resist fire. It imitates a small flame from a malfunction and lets you set flame height, burn time, and angle. This helps you see how your products might catch fire in real life, so you can improve quality and meet safety rules.

Standard:

IEC 60695-11-5 Fire hazard testing – Part 11 -5: Test flames – Needle-flame test method – Apparatus, confirmatory test arrangement and guidance.

Product features:

• Direct supply from the manufacturer, mature production process, stable components, and timely after-sales service.
• Precise control of needle flame height: 12 ± 1 mm, meeting IEC 60695-11-5 standard requirements.
• The burner consumables are made of high-quality stainless steel, with an aperture of φ0.5 ± 0.1 mm, outer diameter ≤ φ0.9 mm, and length ≥ 35 mm, ensuring stable combustion performance.
• Tilt combustion at 45° (test state) or vertical adjustment (calibration state), flexibly simulating different angles of flame attack.
• High temperature control accuracy, gas heating from 100 ± 5 ℃ to 700 ± 3 ℃, combustion start-up time 23.5 ± 1 s, accurate and reliable data.
• Large touch screen or PLC control, preset combustion time (0-9999.9 s), automatic recording and pause functions, improving experimental efficiency.
• The combustion chamber has a matte black background, and the sample is placed under a specified area of ​​cypress wood and silk paper, meeting standard requirements.

Parameter:

Test Objects and Items:

Test Objects:

• Plastic housings, structural parts, connectors, terminals, plugs and sockets for electronic and electrical products
• Engineering plastic parts, insulation materials, molded parts, elastomer parts
• Automotive interior trim, instrument panel plastic parts, automotive connector assemblies
• Home appliance parts, fan parts, communications equipment housings

Test Items:

• Whether the component ignites under a small flame (needle flame)
• Burning duration after ignition, self-extinguishing, and flame propagation
• Whether flames drip/burn through, or whether red-hot particles are released during combustion
• Whether the paper beneath the test specimen ignites (to test for flame transmission risk)

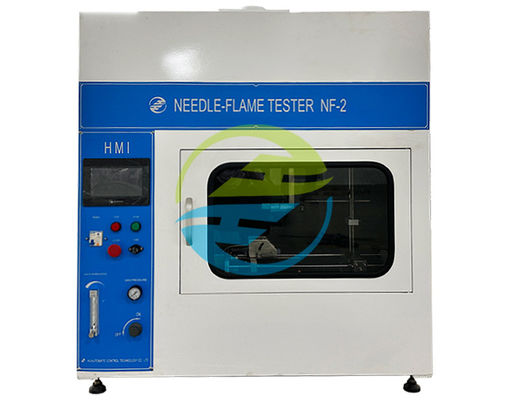

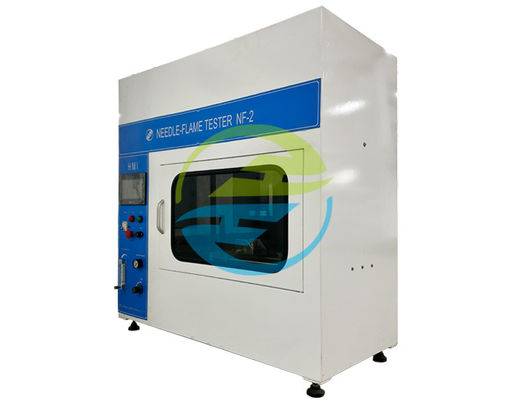

Detail pictures:

HJ After-sales Service:

• Technical support: Professional engineer team provides remote guidance and on-site maintenance.
• 1-year warranty: core components warranty, free replacement of non-human damaged parts.
• Quick response: provide solutions within 72 hours, global service network coverage.
• Customized service: support personalized needs such as test chamber expansion and function upgrade.
